Deaver Long Travel Spring Under WIY Kit

Partial DIY Kit for 2.5" Springs — Spring Under Setup

This weld-it-yourself kit is built for spring-under setups using 2.5" wide Deaver long travel leaf springs. It includes deep cradle-style bottom plates to protect U-bolt threads from rocks and trail damage, with extra length for trimming after installation.

The snug spring plates are designed to hold everything in place even if the center pin fails. Perches are slightly wider than standard for full spring support and better axle control. This is a partial DIY kit—welding is required and it covers one axle (driver and passenger sides).

Key Features

• Part Number: R1119
• Weld-it-yourself kit for 2.5" wide long travel leaf springs
• Cradle-style brackets offer U-bolt thread protection
• Perches available for 3", 3.25", or 3.5" axle tube diameters
• Designed to prevent spring movement even without center pin

What's Included

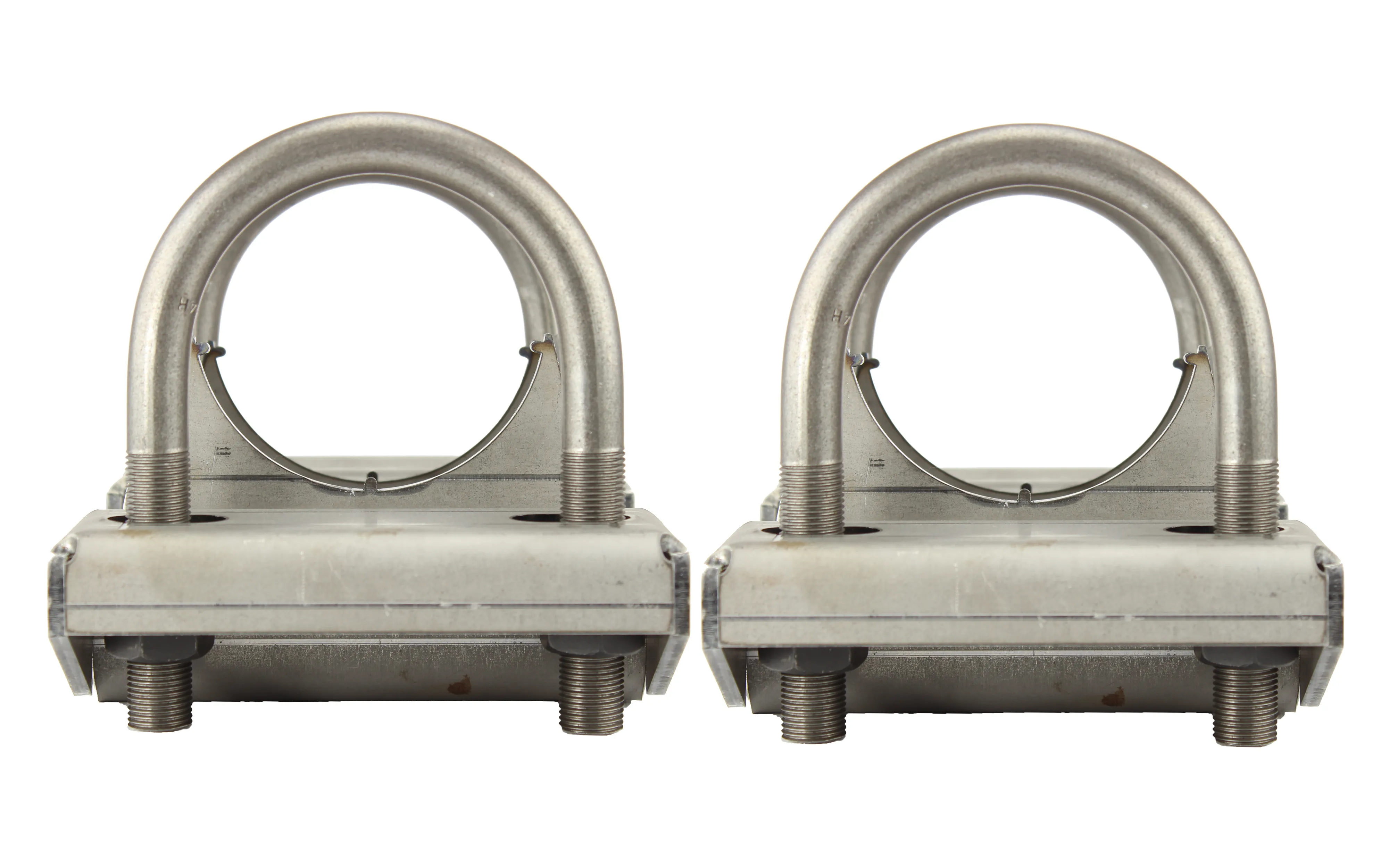

• (2) Spring Under Leaf Spring Plates for 2.5" Springs
• (2) Perches for 3", 3.25", or 3.5" Axle Tubes (2.5" Wide)
• (4) 8" Long U-Bolts with Hardware

Available Kit Options

• Axle Tube Size: 3" Axle Tube / 3.25" Axle Tube / 3.5" Axle Tube
• Add 3" Axle Mount Shock Bracket: No / Yes
