Offset Axle Panhard Bracket

Heavy-duty offset panhard bracket with multiple mounting options.

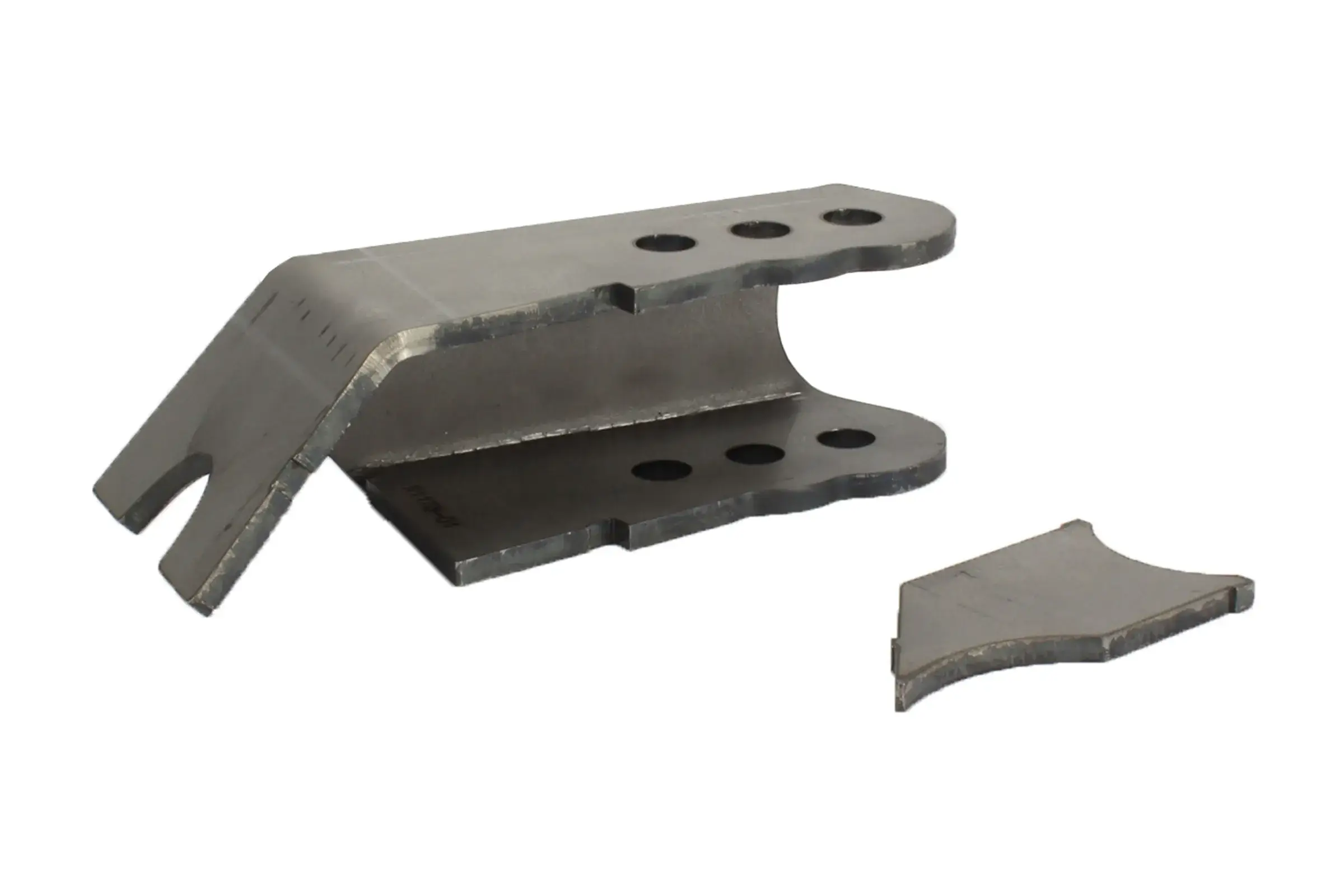

This offset panhard/track bar bracket provides three mounting positions at 4", 5", and 6" from axle center, giving flexibility for fine-tuning suspension geometry. Designed to fit a 3" axle tube, it can also be modified to work with other axle tube sizes as needed. Built from 1/4" steel plate, it includes a reinforcement plate for added strength once welded in place.

The bracket has a 2" inside width and comes drilled for 9/16" bolts, making it compatible with standard suspension hardware. Sold individually, it's built for durability and customization in demanding suspension setups.

Key Features

• Part Number: R1173
• Offset design with 3 mounting positions (4", 5", 6" from axle center)
• Cut for 3" axle tubes (modifiable for other tube sizes)
• 2" inside width, drilled for 9/16" bolts
• Made from 1/4" steel plate
• Reinforcement plate included for welding
• Sold individually

What's Included

• (1) Offset Axle Panhard Bracket
• (1) Reinforcement Plate

Notes

• Welding required for installation.
• Designed for 3" axle tubes—modification may be needed for other diameters.
